Air Sampler

Home
Inquiry

Optimized for ISOLATOR and RABs

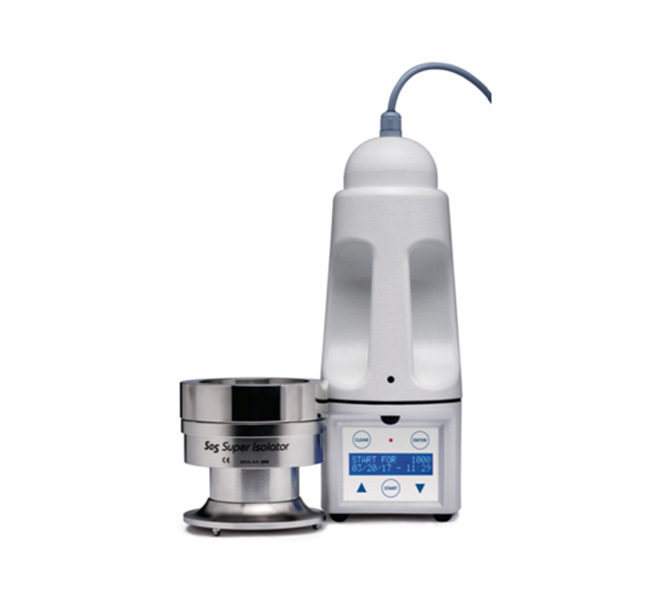

SAS SUPER ISOLATOR (Single head) /
DUO SAS SUPER ISOLATOR (Dual head)

Product features

  • Can be installed in isolator, RABs system
  • Hydrogen peroxide fumigation possible
  • Prevents cross contamination as the sampling head and main unit is separated
  • Easy disconnection using coupler
  • When dual head is used, bacterial/fungal monitoring can be done simultaneously
  • Satisfies USP Chapter 1116 and ISO 14698-1
  • Provides IQ, OQ validation protocol
  • Collects up to 70,000 L of air and stores 300 sampling cycles
  • Accurate sampling rate maintained by speed sensor installation
  • Structure to prevent turbulence and measured air re-inhalation of one-way air flow
  • Easy and simply key pad
  • Automatic notification when instrument calibration expires
  • Provides traceability

Product specification

SAS SUPER ISOLATOR 100 SAS SUPER ISOLATOR 180 DUO SAS SUPER ISOLATOR 360
Flux 100LPM 180LPM 360LPM (180LPM+180LPM)
Collection time 1000L / 10min 1000L / 5.5min 2000L / 5.5min
Battery capacity 70,000L (for 1 time charge) 40,000L (for 1 time charge) 40,000L (for 1 time charge)
Battery time Approx. 11 hours Approx. 4 hours Approx. 2 hours
Speed sensor O
Interval sampling Possible
Delay sampling Possible
Weight 1.75Kg 1.75Kg 2.1Kg
Size 105×110×290 mm (W x L x H)
Compatible head Stainless steel
Compatible medium Petri dish (90mm) / Contact plate (55mm)
Data output Can be downloaded on PC in various formats (USB C-type)
Product warranty 2 years

Accessories

  • Single-use heads
    for air samplers
  • Adapter for
    Petri dishes Ø 90 mm
  • Additional
    aspirating chamber
  • Infrared
    remote control
  • Battery charger
    with universal plug
  • Fixed wall-type
    extension cable
  • SAS software for downloading data from SAS super Isolator

Compliance with regulation

  1. 1. USP chapter 1116 ‘Microbiological evaluation of clean rooms and controlled environment’
  2. 2. EU guide for GMP – ‘Manufacture of sterile medicinal products control medicines and inspection’
  3. 3. ISO Standard 14698-1 ‘Cleanrooms and associated controlled environments biocontamination control – Part 1: General principles and methods’
